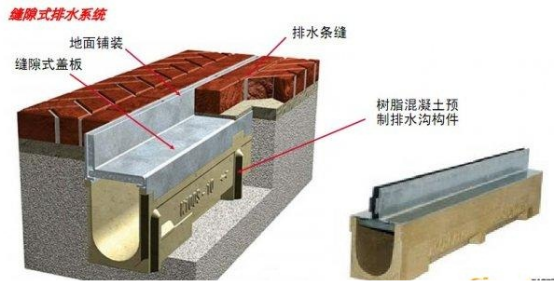

Resin concrete drainage ditch

Product characteristics of resin concrete linear drainage ditch:

1、with light weight, easy installation, strong carrying capacity;
2、 long life: anti aging, good stability, anti freezing and anti chemical corrosion;
3、smooth surface, good drainage performance, low water absorption and permeability;

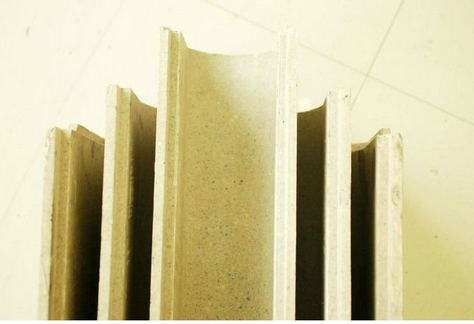

4、U section can increase the drainage capacity, enhance self purification function;
5、 rapid installation, installation costs;
6、the artificial ground to carry out artistic design;
7、drainage ditch standard length: 500mm and 1000mm;
8、drainage ditch at the bottom of the pipeline interface reserved; in accordance with the European standard EN1433 standard production.

Resin concrete linear drainage ditch product advantages
●The formation of linear drainage drainage efficiency is high and not easy to detect the cracks in the pavement
●It does not affect the aesthetic effect of pavement
●The installation of speed, shorten the construction period
●It can reduce the risk of clogging of drainage system
●The cleaning manhole cover can be filled with paving materials, does not affect the pavement effect and convenient cleaning maintenance of drainage system
●The long life cycle and low maintenance cost

VHBEST make the following resin concrete drainage ditch:

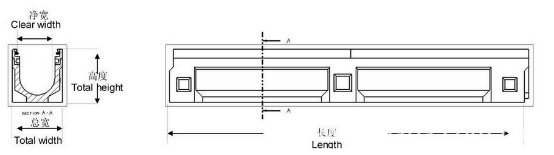

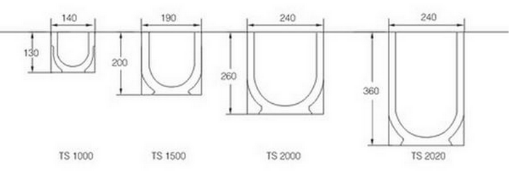

Detailed specification:
Inner width: 100mm  trench depth:  60mm   100mm   150mm   180mm
Inner width: 150mm  trench depth: 150mm   180mm   210mm   250mm
Inner width: 200mm  trench depth: 200mm   250mm   280mm   330mm
Inner width: 250mm  trench depth: 200mm   250mm   280mm   350mm
Inner width: 300mm  trench depth: 250mm   300mm   350mm   380mm

Applicable cover:  plastic mesh cover plate, stainless steel cover plate,

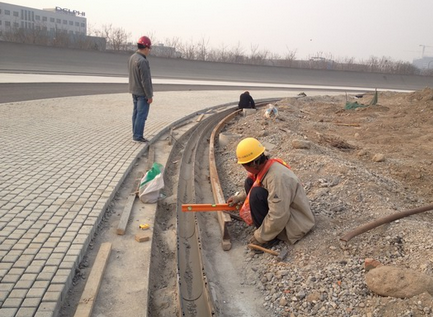

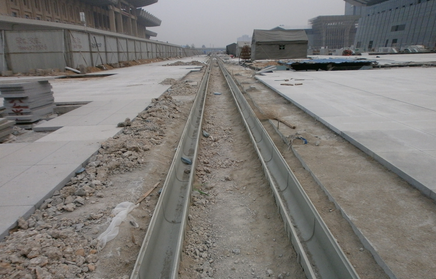

Case：
