Fountain universal supports

Overhead height more than 600mm, fountain need high bearing capacity, high stability, long service life, cold resistant universal supports. We develop and research the M160 series fountain universal supports within one year.

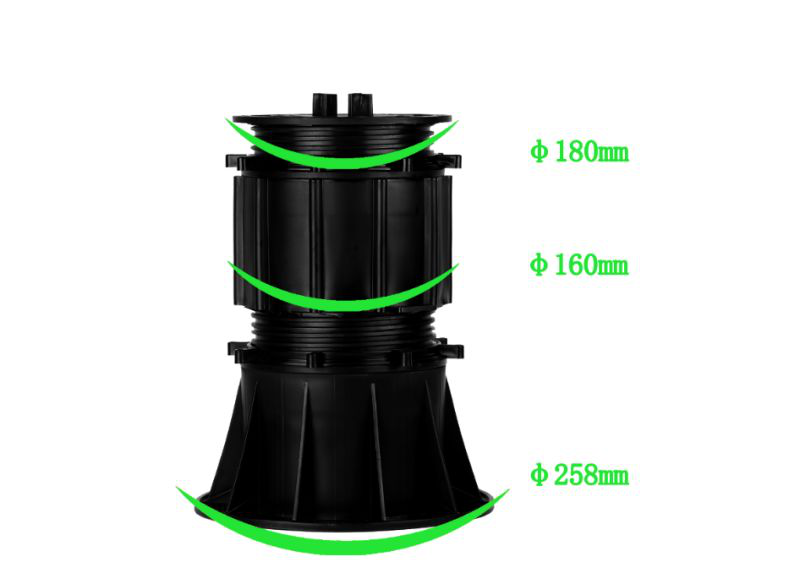

M160 series: large base contact surface, and the large top contact surface is the guarantee of the stability of the product,

M160 series: external screw 150mm is a super bearing capacity of the guarantee,

M160 series: British T10 anti thread is a further guarantee of super bearing capacity

M160 series: raw material PP/PA modified material to join the cold resistant high temperature element, is the guarantee of product safety

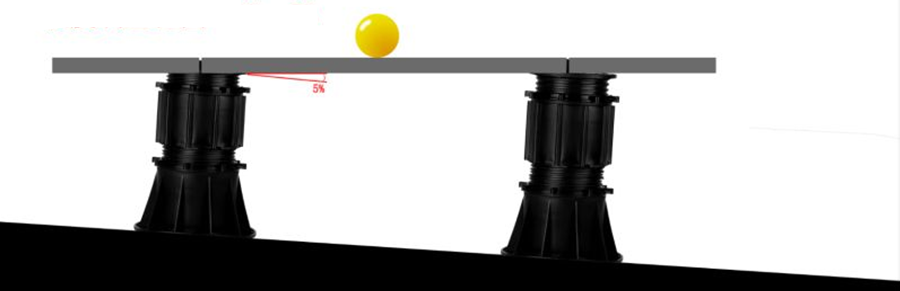

M160 series: adjust the height of the thread rotation, height can be adjusted,

Fountain stone cracks generally use 5mm or 10mm, there are special circumstances to use 15mm or 20mm,

Fountain stone generally use 80-150mm thickness, shape 500X500mm 600X600mm

600X600mm shape stone 1 square use 2.9 universal supports

500X500mm shape stone 1 square use 4 universal supports

M160 series:
